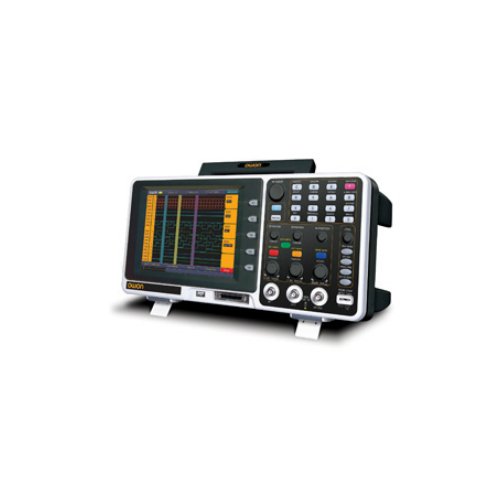

OWO4101-MSO7062TDV2 60 MHZ, 2+1 CH, 2 GS/S MIXED SIGNAL DIGITAL STORAGE OSCILLOSCOPE WITH LOGIC ANALYZER
Category: Oscilloscope/Scopemeters
- 2 in 1 ( DSO+LA )
- 8" inch LCD color display
- Support USB for data transmission to PC
- USB Flash Disk Storage
- 20 Automatic Measurements
- Digital Storage Oscilloscope
- 60 MHz bandwidth
- Max up to 2 GS/s sample rate
- Auto-scale
- FFT
- Logic Analyzer
- 100MHz bandwidth
- Max up to 1 GS/s sample rate
- 16 input channels
Applications - Design and Debug
- Circuit function test
- Identified signals logic information
- Education & Training
- Mixed signal circuit test
Specifications Bandwidth 60 MHz Sample rate(Real time) 1 GS/s (500 MS/s for dual channels) Horizontal Scale(S/div) 2ns/div-100s/div step by 1-2-5 Rise time ≤3.5ns Display 8.0'' color LCD, TFT Screen, 640x480 pixels, 65535 colors DC accuracy(Average) Average>16:±(3%reading+0.05div) for △V Vertical Sensitivity 2mV/div -10V/div DC Gain Accuracy ±3% Vertical resolution (A/D) 8 bits (2 channels simultaneously) Channels Dual channels + external trigger Interpolation (sin x)/x Max. Input Voltage 400V ( DC + AC PK-PK ) Probe attenuation factor 1X，10X，100X，1000X Trigger Mode Edge, Video, Alternate, Pulse, Slope Acquisition mode Normal, Peak Detect, Average Record length Max.2M points Waveform storage 4 waveforms Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot , Risetime, Falltime, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B Waveform math ＋, －, ×, ÷,FFT Power supply 100-240V ACRMS,50Hz/60Hz,CATⅡ Lissajou’s figure Bandwidth 100MHz Phase difference ±3 degrees Communication interface USB, Support USB Flash Disk Storage Fuse 1A, T grade, 250V Cymometer Available Power Supply 110V-240V ACRMS, 50/60Hz, CAT II Logic Analyzer Characteristics Sample rate (real time) 20S/s～1 GS/s Bandwidth 100 MHz Channels 16 Record length Max 4M/channel Input impedance 660KΩ±5% // 15±5pF Trigger mode Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger,
Distributed queue triggerTrigger position setting Pre-trigger, mid-trigger, re-trigger Threshold Voltage ±6V (4 settings) Input Signal Range ±30V Data search Available Data System Binary system, Decimal system, Hex Digital filter 0,1,2 optional Setting storage 10 settings Ordering Information Model Description MSO7062TD Owon MSO7062TD 60 MHz, 2+1 Ch, 2GS/s Mixed Signal Digital Storage Oscilloscope with Logic Analyzer Included Accessories - 1 - Probe
- 1 - Power cord
- 1 - Logic analyzer module
- 1 - User's Manual
- 1 - USB
- 1 - CD-Rom
- 1 - Probe adjust
