TES0026-1333R Datalogging Solar meter

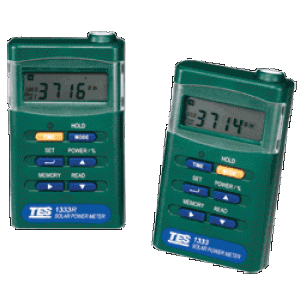

TS-1333R Datalogging Solar Power Meter

Order no: TES0026 (Confirmed in stocks)



http://tes.com.tw/image/featuree.gif

http://tes.com.tw/pro-images/1333_1333R.gif

  • Wide spectral range.
  • Excellent long term stability.
  • Cosine corrected.
  • Automatic transmission measurements.
  • Select either power or transmission.
  • Solar energy power or transmission.
  • Current time setting function.
  • User calibration factor setting function.
  • End-mount light sensor.
  • Select either W/m2 or Btu / (ft2*h) units
  • Data Hold / MAX / AVG modes.
  • Data Memory and Read function. (99 sets.)
  • Auto Data memory and RS232 interface to PC. (TES-1333R)

http://tes.com.tw/image/usee.gif

  • Meteorology
  • agriculture
  • solar radiation measurement
  • solar power research
  • physics and optical laboratories
  • solar transmission measurement
  • identify high performance windows

http://tes.com.tw/image/spee.gif



Display

3-1/2 digits.Max.indication1999

Range

2000W/m 2 、634Btu/(ft 2 * h)

Resolution

1W/m2、1Btu/(ft2*h)

Spectral response

400-1100nm

Accuracy

Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / ℃ [ ±0.12 Btu / (ft2*h)/ ℃] from 25℃

Angular accuracy

Cosine corrected <5% for angles

Drift

<±2% / per year

Calibration

User recalibration available

Over-input

Display shows" http://tes.com.tw/img-icon/1-0L.gif"

Sampling Time

Approx. 0.4 second

Manu data memory and read

99 sets

Auto data memory

32000 sets (TES-1333R)

Battery

4pcs size AAA

Battery Life

Approx. 100 hours

Operating temp and humidity

0 ℃ to 50 ℃below 80%RH

Storage temp and Humidity

-10 ℃ to 60 ℃ below 70% RH

Weight

Approx. 165g

Dimension

111(L)*64(W)*34(H)mm

Accessories

Carrying Case, Operation Manual, 4 pcs size AAA, RS-232 cable (for TES-1333R), CD software (For TES-1333R)
