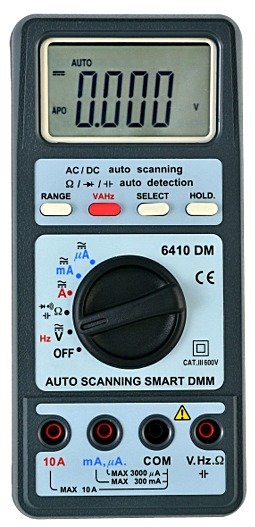

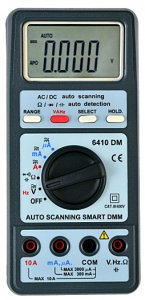

Sew 6410 DM

Category: Digital Multimeters

FEATURES

● 3000 counts with a maximum display of 2999.
● Angled display design helps the user to identify the
reading of value easier.
● Auto scanning function for AC/DC voltage, and current.
● Auto ranging.
● Range change function.
● Continuity check.
● Diode & Capacitance measurement.
● Data hold function.
● Low battery indication.
● Over range indication.
● Fuse protection.
● Special hook design used to hang the meter for ease of use.

SPECIFICATIONS

DC Voltage
Ranges	Resolution	Accuracy		Input protection
300.0mV	100μV	±(0.5%rdg+3dgt)		1000V DC
3.000V	1mV
30.00V	10mV
300.0V	100mV
1000V	1V
․Input impedance : 10MΩ
AC Voltage
Ranges	Resolution	Accuracy		Input protection
300.0mV	100μV	±(1%rdg+5dgt)		800V AC
3.000V	1mV
30.00V	10mV
300.0V	100mV
750V	1V
․Input impedance : 10MΩ
DC Current
Ranges	Resolution	Accuracy		Input protection
300.0μA	0.1μA	±(1%rdg+5dgt)		500mA
3000μA	1μA
30.00mA	0.01mA
300.0mA	0.1mA
10A	10mA	±(2%rdg+3dgt)		12.5A
․Overload Protection 0.5A/250V fast blow fuse for 300mA 12.5A/500V fast blow fuse for 10A
AC Current
Ranges	Resolution	Accuracy		Input protection
300.0μA	0.1μA	±(1%rdg+5dgt)		500mA
3000μA	1μA
30.00mA	0.01mA
300.0mA	0.1mA
10A	10mA	±(2%rdg+3dgt)		12.5A
․Overload Protection 0.5A/250V fast blow fuse for 300mA 12.5A/500V fast blow fuse for 10A
Resistance
Ranges	Resolution	Accuracy	Max test current	Max open circuit voltage
300.0Ω	0.1Ω	±(1.5%rdg+3dgt)	0.51mA	0.39V
3000Ω	1Ω
30.00kΩ	10Ω
300.0kΩ	100Ω
3.000MΩ	1kΩ
30.00MΩ	10kΩ	±(2%rdg+4dgt)
․Overload Protection 500V DC
Frequence
Ranges	Resolution	Accuracy
3.000kHz	1Hz	±(1.0%rdg+2dgt)
30.00kHz	10Hz
100.0kHz	100Hz
Continuity
Ranges	Resolution	Continuity beeper		Test current
300Ω	0.1Ω	< 30Ω		0.51mA
Capacitance
Ranges	Resolution	Accuracy
3000pF	1pF	±(3%rdg+10dgt)
30nF	10nF
300nF	100nF
3μF	1nF
30μF	10nF
300μF	100nF
3mF	1µF
30mF	10µF
GENERAL
Low battery indication		“BATT”
Operating temperature		0ºC ~ 40ºC, 80% Max.
Storage temperature & humidity		-10ºC ~ 50ºC, 80% Max.
Dimensions		192(L) × 88.5(W) × 45(D)mm
Weight (battery included)		Approx. 345g
Power source		1.5V (AAA) × 2
Safety standard		EN 61010-1 CAT III 600V EN 61326-1
